G-255-1 Heavy Duty Air Blow Nozzle

G-255-1 Instructions

For generations, the professional quality, all metal, G-255-1 Heavy Duty Air Blow Nozzle has been the choice for industry and home. Every G-255-1 Heavy Duty Air Blow Nozzle is designed and engineered in Cleveland, Ohio and hand-assembled and tested just as soon as we receive your order. Engineered to withstand even the toughest daily use, Tri-Con sprayer equipment is made using quality metal parts including aluminum, steel, brass, and zinc. The commercial-grade spray nozzle body is made of 100% zinc. Tri-Con’s wide availability of spray nozzles and accessories make it simple to customize a system that supports your unique needs.

The G-255-1 comes complete with a one-piece valve assembly that makes maintenance simple. This multipurpose nozzle provides the user with instant on/off functionality with the squeeze of a trigger, and the Ergo-Correct full-hand pistol grip makes usage comfortable. The Tri-Con nozzle body can be sterilized or completely rebuilt using our rebuild kit V-C-F-210-ARK. The top D-Clip can also be removed to allow for easy rebuilding. The bottom D-Clip can be used to lock the trigger handle in place, giving you a continuous spray while you work. The G-255-1 connects to any standard ¼” air hose.

Specifications:

  • H: 4 ¾” W: 1 ½” L: 3”
  • Thread Diameter: ¼”
  • Has a wall thickness of 1/8”
  • Rated for 125 PSI Max

Package Includes:

  • (1) F-C-210-N: Air Blow Nozzle Body Complete
  • (1) 4” Long Zinc Plated 3/8” Steel Wand with ¼” Adapter Nut.
  • (1) 1/8” OSHA Compliant Tip
  • (1) 1/4” OSHA Compliant Tip
  •

    Additional Accessories for G-255-1 Heavy Duty Air Blow Nozzle:

    • F-C-210-N: Air Nozzle Body Only No Tip(s) Included.
    • G-256-1: 1/8” OSHA Compliant Tip Only (Threads onto G-265-4 Steel Treaded Wand)
    • G-256-2: ¼” OSHA Compliant Tip Only (Threads onto G-265-4 Steel Treaded Wand)
    • G-265-4: 3/8” O.D x 4” Length Threaded Steel Wand and H-134  1/8" Adaptor Nut.

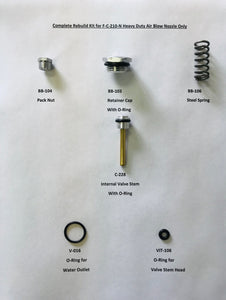

    • V-210-WRK: Complete Rebuild Kit for F-C-210-N Air Nozzle Body Only.

    Instructions: PDF
